How to use codedFixedValue to define a parabolic velocity profile
Programming custom boundary conditions in OpenFOAM (C++ interface)
Understanding fully developed laminar flow profiles
Comparing constant vs. developed inlet velocity effects in channel flow

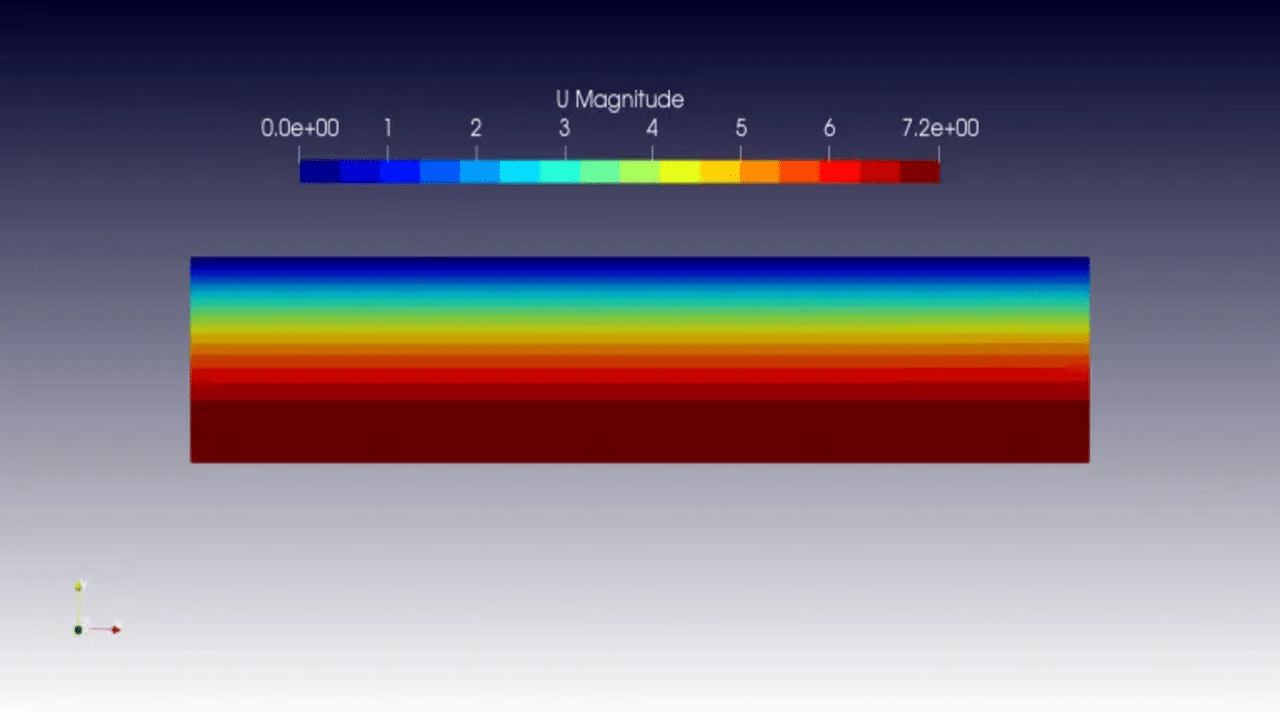

Visualizing and interpreting velocity and pressure fields
Enhancing flexibility in boundary condition definitions for CFD problems

About Course

Product Overview

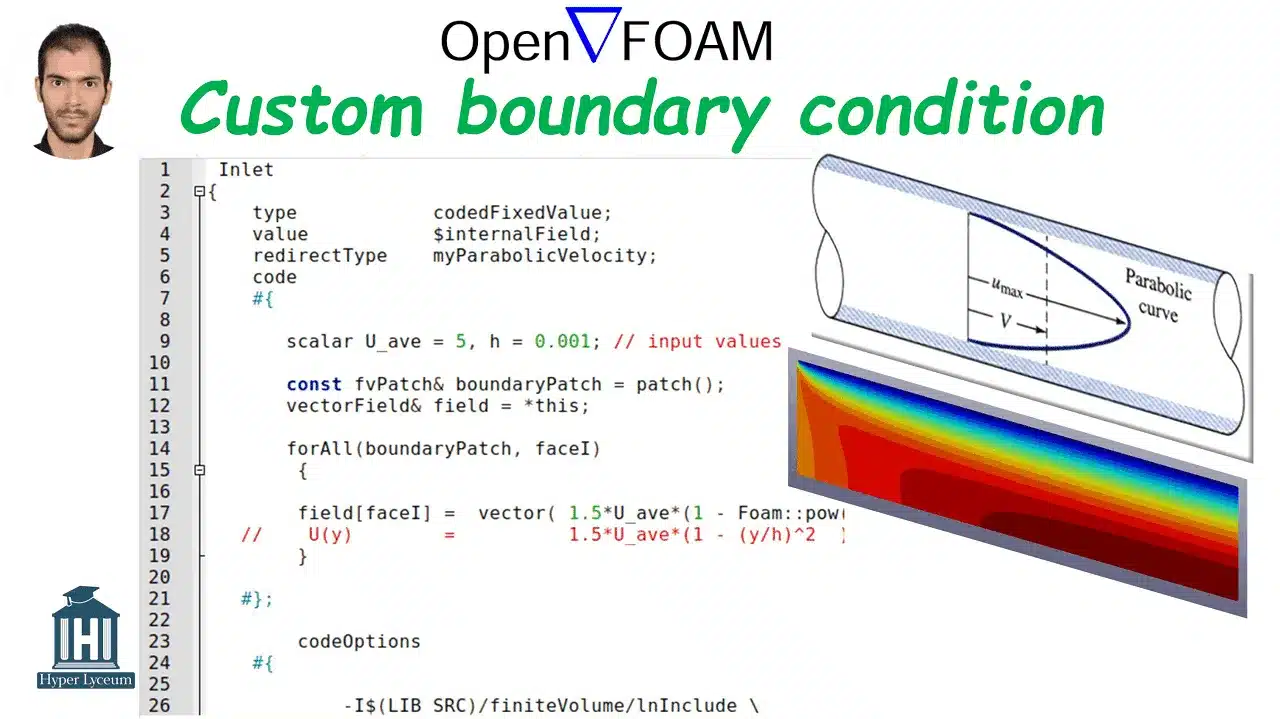

In this tutorial, you’ll learn how to write a custom boundary condition in OpenFOAM using the codedFixedValue feature. This step-by-step guide walks you through programming a user-defined inlet condition to model fully developed laminar flow in a rectangular channel—a classic Hagen–Poiseuille flow scenario.

The tutorial compares two inlet conditions:

A constant velocity profile
A parabolic velocity profile (representing fully developed flow)

By the end of this lesson, you’ll be equipped to define and program velocity profiles using C++ directly within OpenFOAM, giving you more control over your simulation setups.
