Introduction to Cyclic Loading Analysis of an Open-Leg Steel Column

Cyclic loading analysis refers to the study of a structure’s behavior when subjected to repeated or fluctuating loads over time. This kind of analysis is particularly important for steel structures, which may experience dynamic or seismic events, wind loads, vehicle vibrations, or machinery-induced forces. One such structural element that often requires detailed cyclic analysis is the open-leg steel column.

What Is an Open-Leg Steel Column?

An open-leg steel column typically refers to a vertical load-bearing member with an open cross-sectional profile (such as C-shaped, L-shaped, or unsymmetrical I-sections), rather than a fully enclosed box or pipe section. These columns are often used in industrial buildings, portal frames, and bracing systems. Their open geometry makes them more susceptible to local and global buckling under load, especially under cyclic conditions.

Why Perform Cyclic Loading Analysis?

Cyclic loading can lead to:

• Fatigue failure due to the accumulation of micro-cracks.
• Hysteresis behavior (energy dissipation and stiffness degradation over cycles).
• Instability or buckling under repeated loading and unloading.
• Plastic deformation and residual stresses after repeated yield cycles.
• Degradation of connections or local buckling at open flanges.

By performing cyclic analysis, engineers can evaluate:

• The ductility and energy absorption capacity of the column.
• The post-yield behavior (plastic rotation, strain hardening).
• Stiffness degradation and strength deterioration over time.
• The failure mode (buckling, fracture, yielding) under realistic service or seismic conditions.

Key Aspects of Cyclic Loading Analysis

1. Load Protocols
   Cyclic loading is applied using standardized loading protocols (e.g., from FEMA, AISC, ISO) that mimic real-world seismic or service loads, with increasing displacement or force amplitudes.
2. Material Behavior
   Nonlinear material models are used to capture steel’s inelastic response, including the plastic behavior, strain hardening, and cyclic degradation.
3. Geometric Nonlinearity
   Large deformation effects (P-Δ, local buckling) are considered, especially critical for open-section members.
4. Finite Element Analysis (FEA)

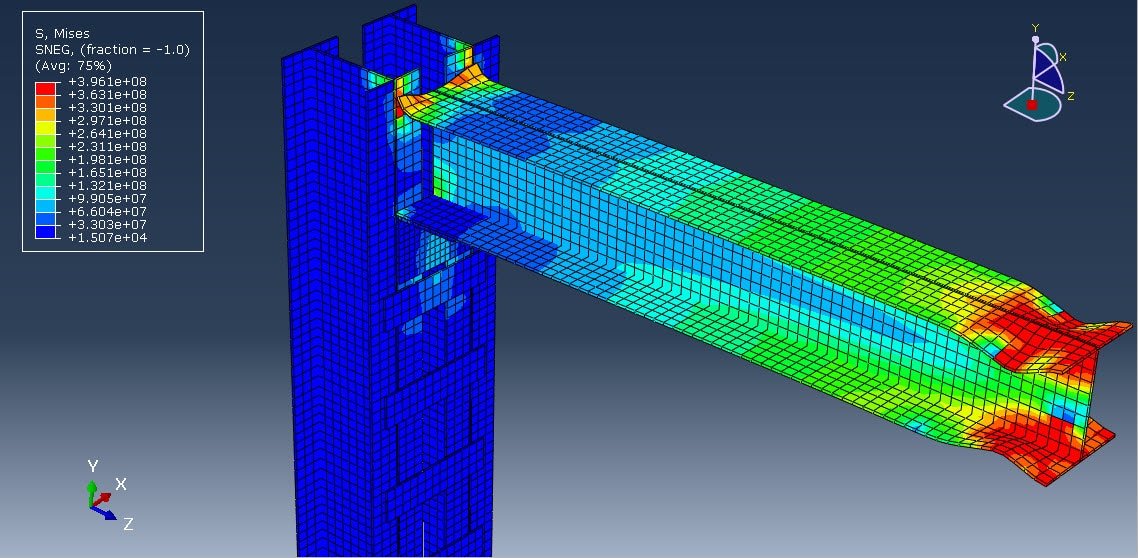

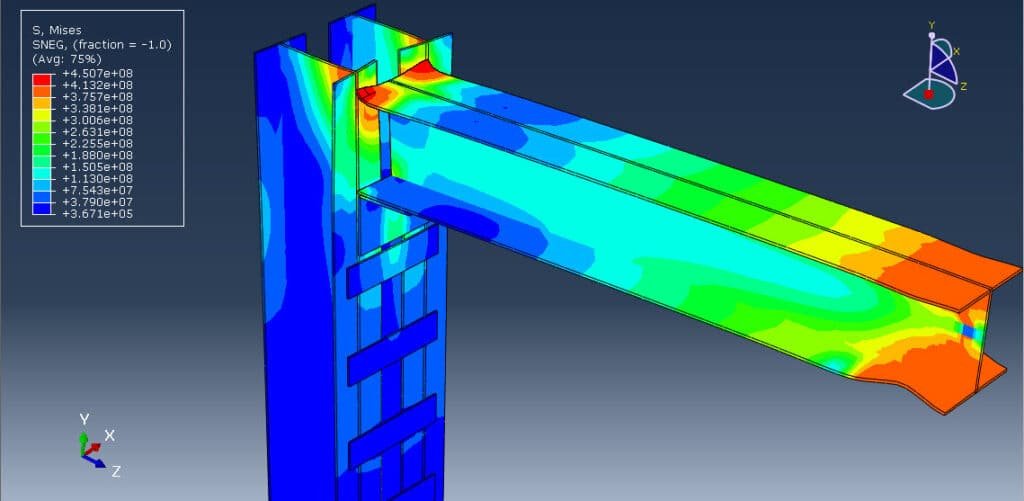

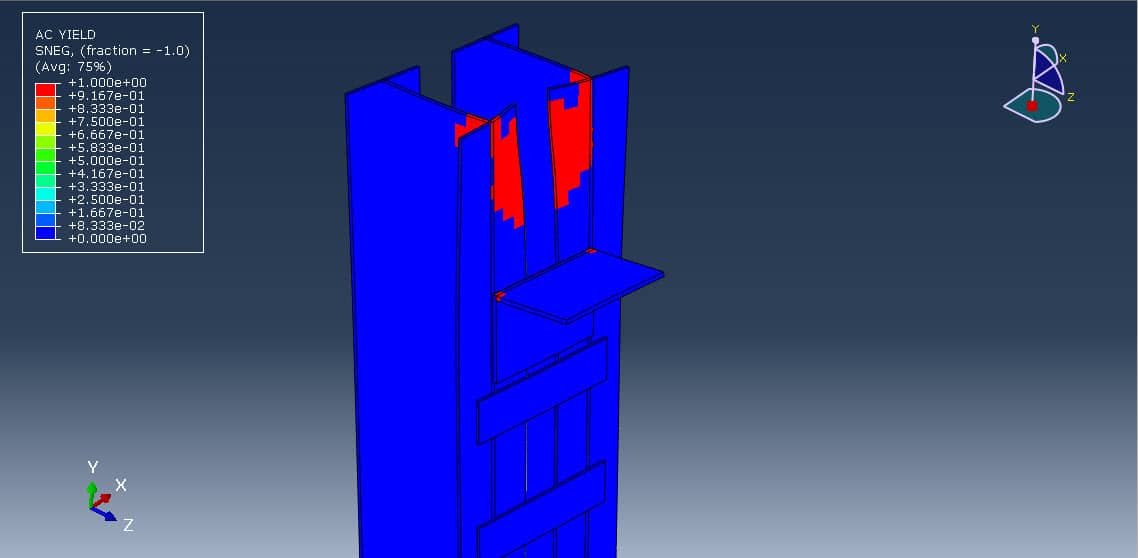

   Most cyclic loading analyses are performed using finite element software (e.g., ABAQUS, ANSYS, OpenSees), where detailed mesh refinement near stress concentrations is critical. In this case, the ABAQUS software is selected.
5. Hysteresis Curves
   Force-displacement or moment-rotation hysteresis curves are generated to assess:
   • Energy dissipation
   • Stiffness degradation
   • Strength softening
6. Failure Criteria
   The analysis identifies the initiation of failure (e.g., flange local buckling, weld fracture, global instability) and calculates life expectancy or number of cycles to failure.

Practical Applications

• Seismic design of buildings and industrial facilities.
• Retrofitting and assessment of aging steel structures.
• Design optimization to improve energy dissipation.
• Fatigue life assessment for crane columns, offshore platforms, or bridges.

Cyclic loading analysis of open-leg steel columns is crucial for ensuring structural resilience, especially under dynamic or repetitive load conditions. Due to their open cross-sections, these columns exhibit unique challenges in terms of buckling and inelastic behavior. Advanced numerical simulations and understanding of hysteretic responses are key to designing safer, more durable steel systems.
