Introduction

Reinforced Concrete (RC) columns are vital structural components in buildings and infrastructure. During seismic events, these columns are subjected to complex loading that can lead to cracking, spalling, or even failure. Traditional retrofitting techniques like steel jacketing or concrete encasement can be labor-intensive, costly, and add significant dead load.

Analysis of CFRP for seismic strengthening of the RC column (CFRP) has emerged as a promising solution for strengthening RC columns due to its high strength-to-weight ratio, corrosion resistance, and ease of installation. The analysis of CFRP strengthening involves understanding its behavior under seismic loads and its interaction with existing concrete and steel reinforcement.

Explanation

1. Purpose of CFRP Strengthening

The primary goals of using CFRP for seismic strengthening of RC columns include:

• Enhancing ductility – allowing the column to undergo large deformations without failing.
• Increasing shear strength – preventing brittle shear failure during an earthquake.
• Improving confinement – maintaining the integrity of concrete under cyclic lateral loads.
• Restoring or increasing axial load capacity – especially in aging or damaged columns.

2. Material Properties of CFRP

• High tensile strength (up to 10x that of steel)
• Low weight – adds minimal load to the structure
• Corrosion resistant – unlike steel jackets, CFRP does not rust
• Anisotropic behavior – strong in the fiber direction, weaker perpendicular to it
• Linear elastic until failure – no yielding phase like steel, so design must avoid over-stressing

3. Strengthening Techniques for RC Columns

CFRP can be applied in several configurations:

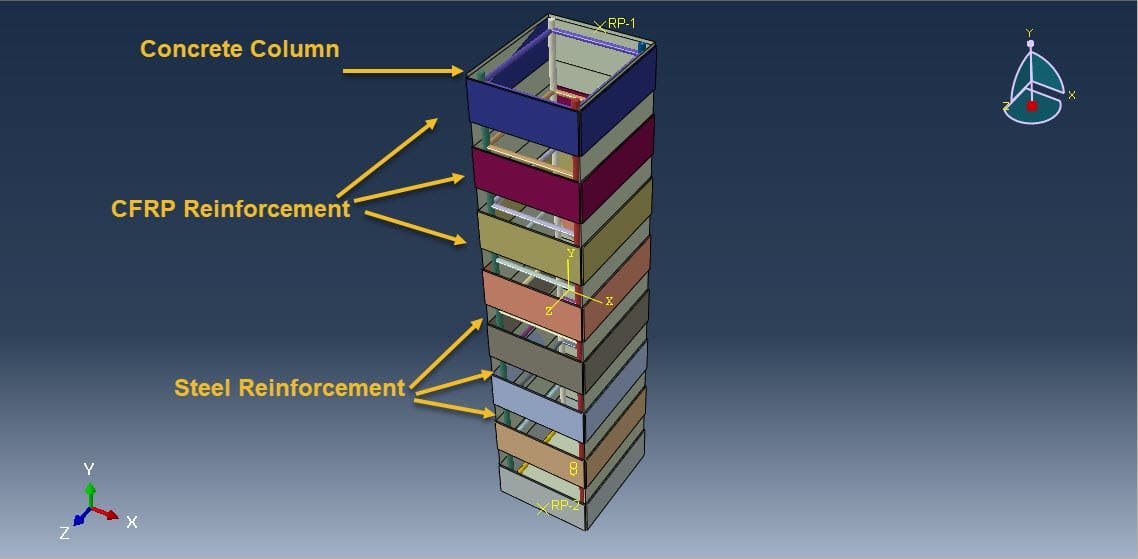

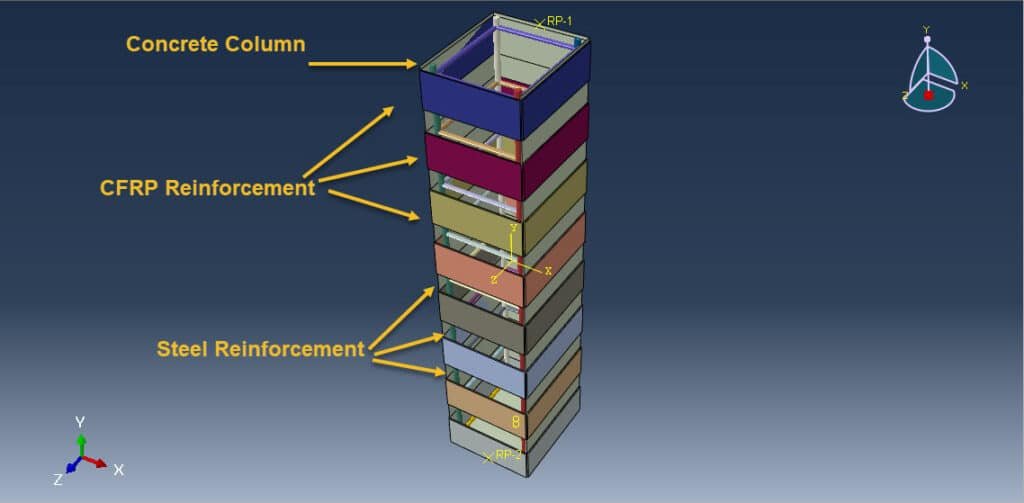

• Wrapping (confinement): Continuous sheets wrapped around the column increase lateral confinement, improving ductility and load capacity.
• Longitudinal strips: Applied vertically to improve flexural capacity.
• Hybrid methods: Combining transverse and longitudinal CFRP for combined axial, shear, and flexural enhancements.

4. Seismic Analysis Considerations

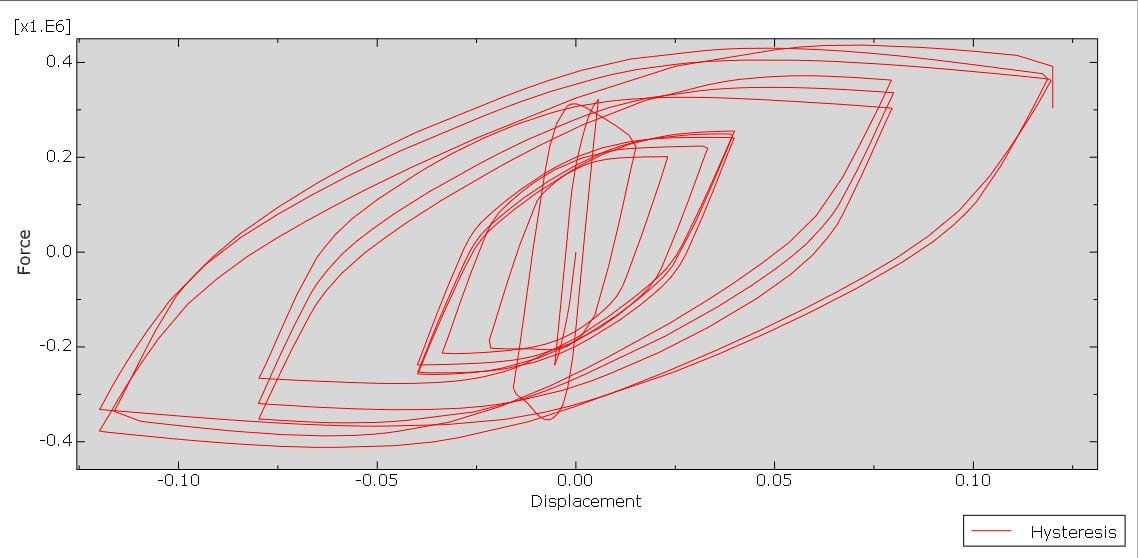

• Cyclic loading: Earthquakes involve repeated, reversing loads. CFRP must be analyzed for fatigue and bond durability under such conditions.
• Stress-strain interaction: CFRP affects how the concrete core and steel reinforcement behave under compression and tension.
• Failure modes: Analysis must account for possible debonding, CFRP rupture, or premature concrete crushing.

5. Design and Analysis Approaches

• Analytical modeling: Using confinement models (e.g., Mander’s model modified for CFRP) to predict enhanced behavior.

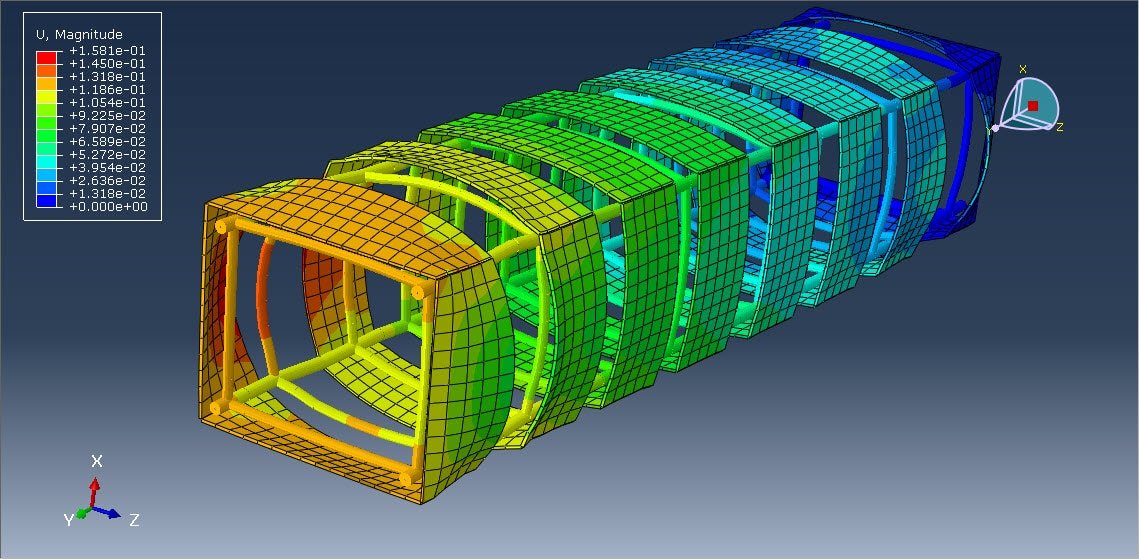

• Finite Element Analysis (FEA): Simulates seismic loading and interaction between CFRP, concrete, and steel.

CFRP is a highly effective and modern solution for enhancing the seismic performance of RC columns. Its successful application requires a deep understanding of structural dynamics, material behavior under cyclic loads, and appropriate design methodologies. Proper analysis ensures safety, durability, and cost-effectiveness in retrofitting RC structures in seismic zones.
