Introduction to Ceramic UHMWPE Armor: Lightweight Ballistic Protection

The analysis of ceramic–ultra-high molecular weight polyethylene (UHMWPE) composite armor systems has become a prominent area of research due to the growing demand for lightweight ballistic protection with high energy absorption capability. Conventional metallic armor, while effective, imposes weight penalties that limit mobility and reduce system efficiency in modern military and law-enforcement applications. Ceramic–polymer hybrid armors offer a promising alternative by combining the high hardness and compressive strength of ceramics with the toughness, ductility, and energy-dissipating characteristics of UHMWPE.

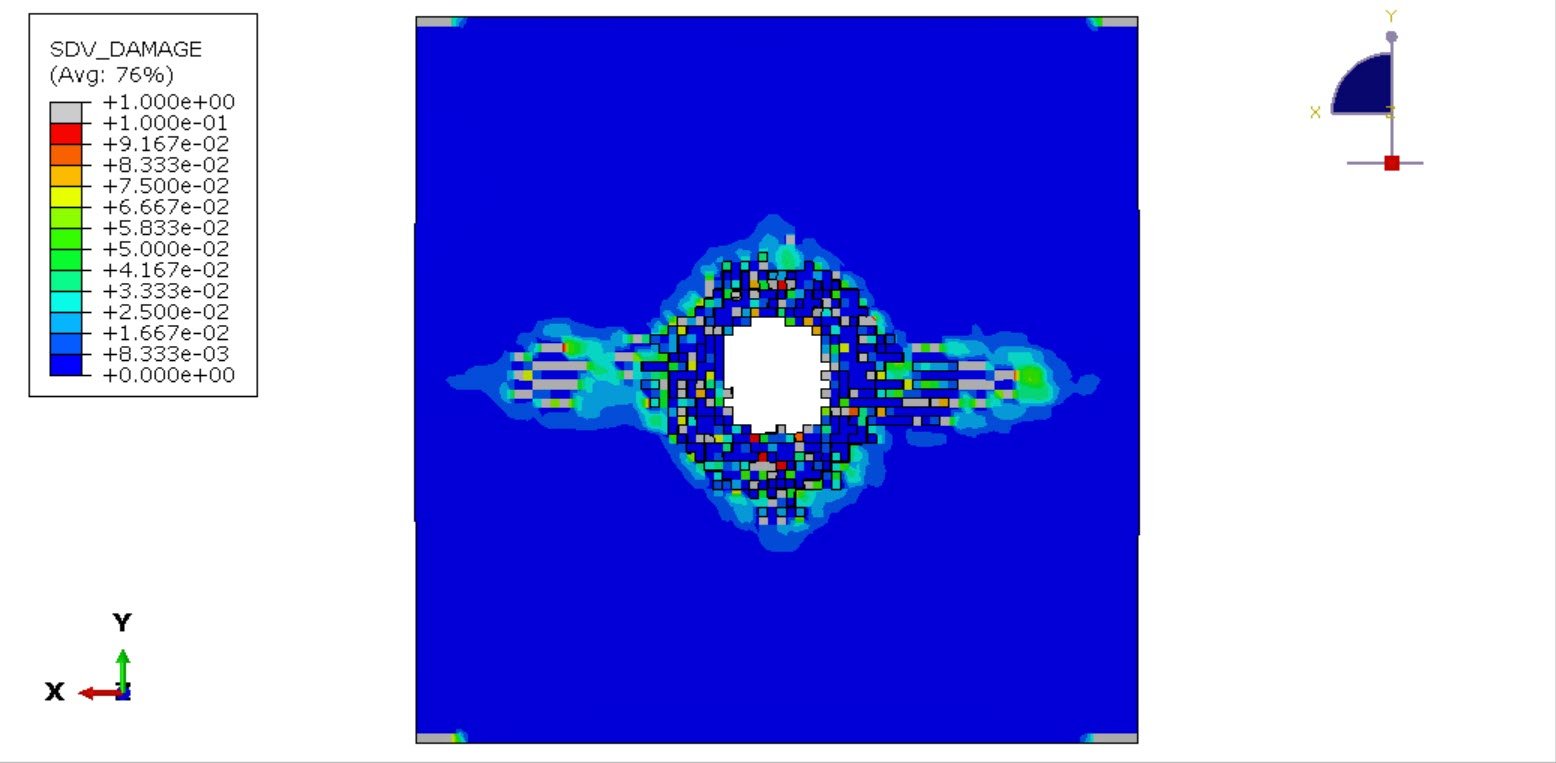

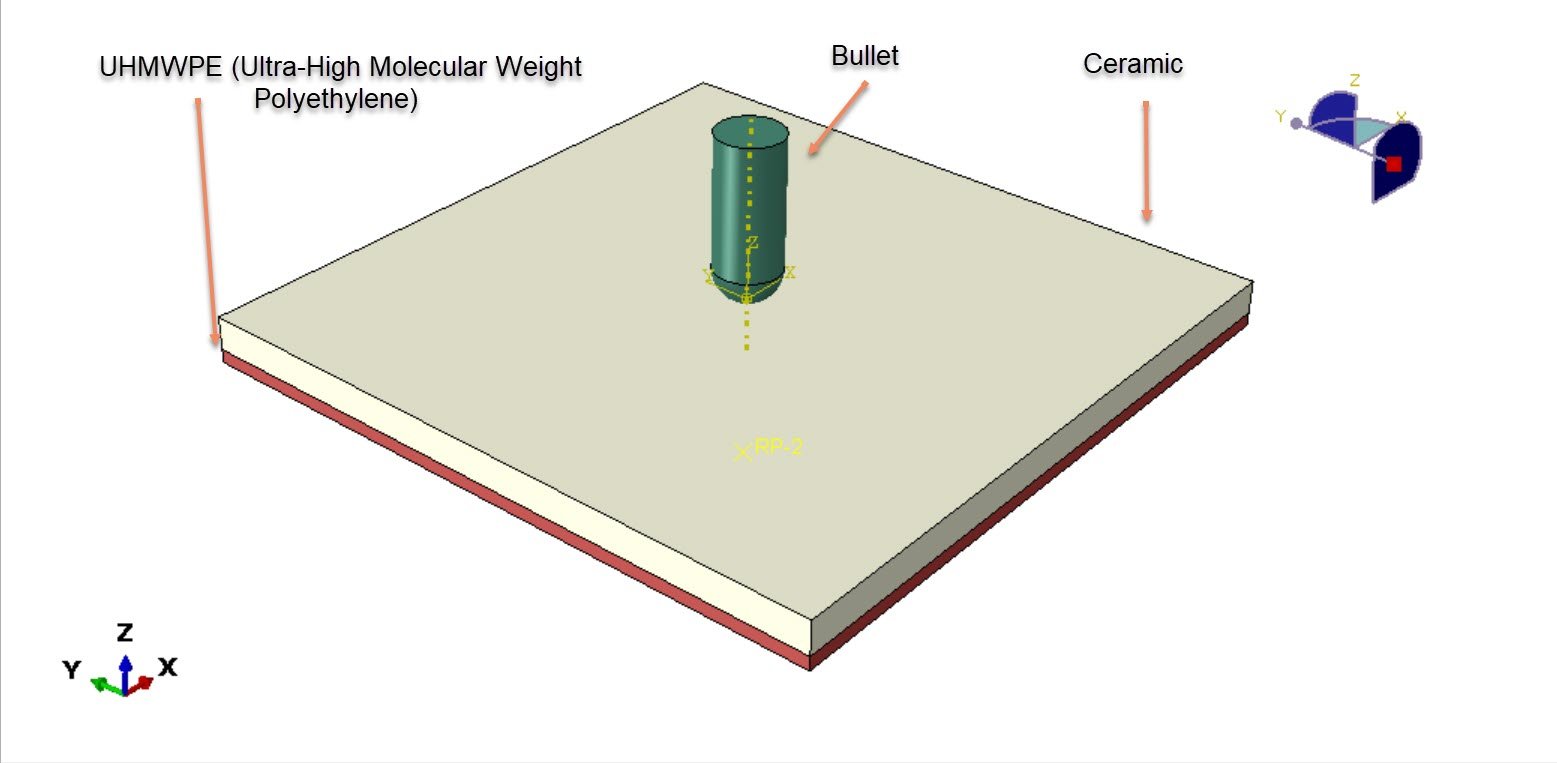

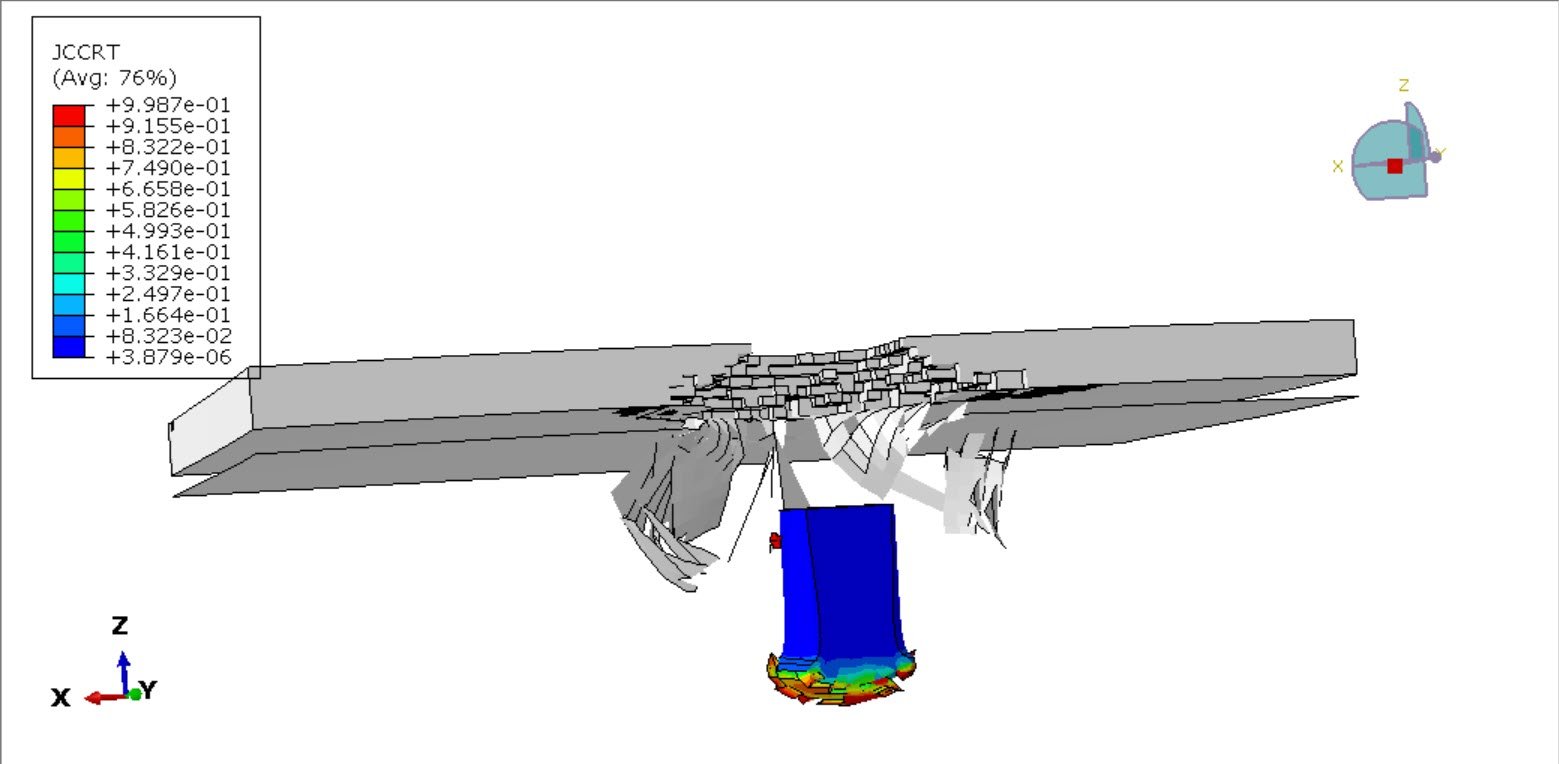

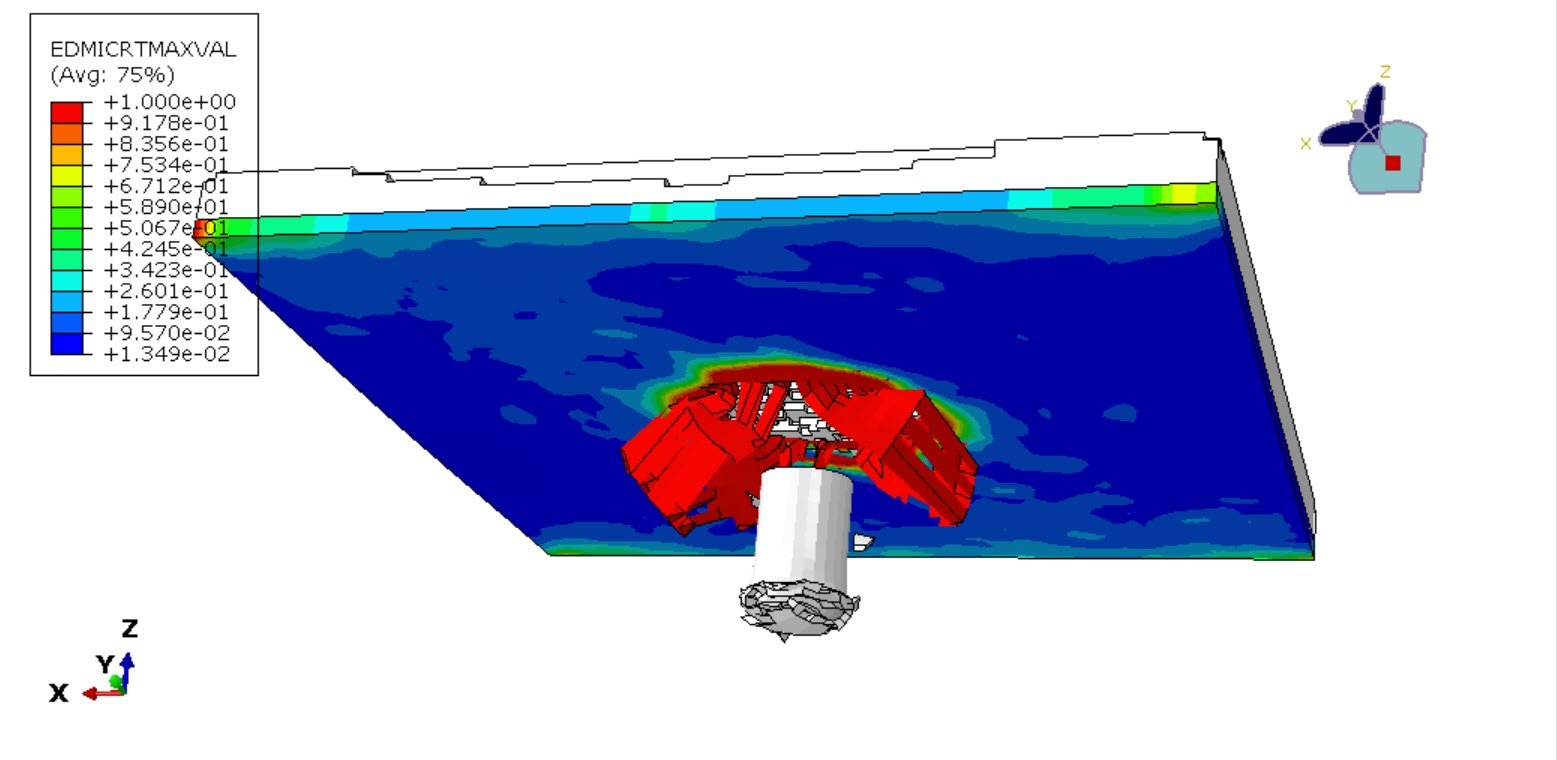

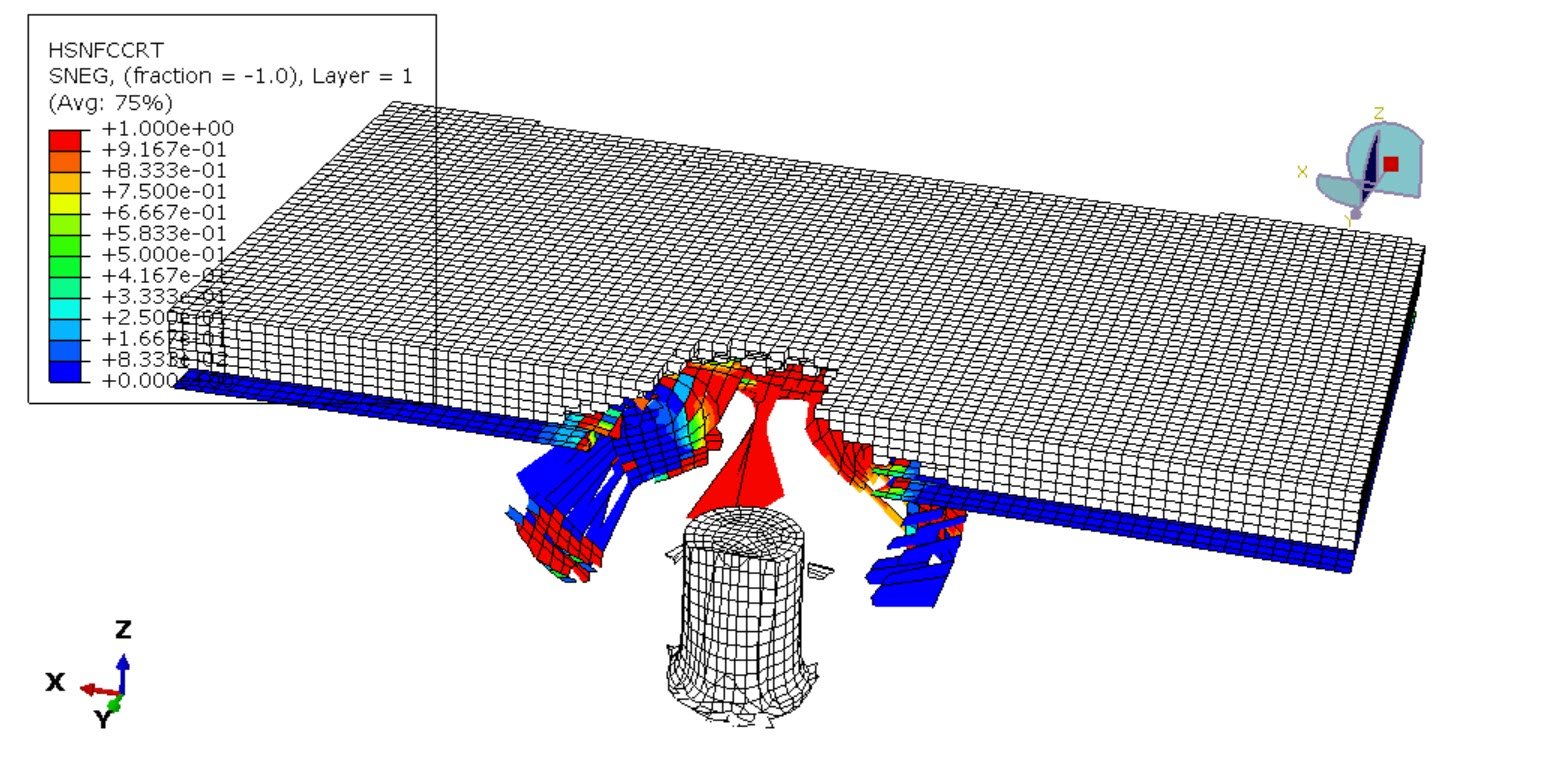

In this example, the Johnson-Holmquist brittle damage model is selected for ceramic, and Hashin’s damage criterion is used to demonstrate the UHMWPE behavior under severe impact load. The bullet is a deformable part with steel material and damage behavior.

When a ballistic projectile impacts the ceramic strike face, the ceramic works to shatter or erode the bullet core, spreading the impact energy over a larger area and reducing the projectile’s penetration capability. However, ceramics are brittle, and fragmentation alone is insufficient to stop the penetrator. The UHMWPE backing layer provides critical structural support by absorbing residual kinetic energy through plastic deformation, fiber stretching, delamination, and stress wave attenuation. Together, these mechanisms enable multilayer ceramic–UHMWPE armor systems to achieve high penetration resistance at comparatively low areal density.

Analytical and experimental research in this field typically focuses on understanding stress wave propagation, material failure mechanisms, back-face deformation, and performance optimization through improved material selection, layered configurations, and predictive modeling. By examining these factors, researchers aim to enhance protection levels while minimizing armor weight, improving structural integrity, and advancing next-generation personal and vehicle armor technologies.
