Introduction

The analysis of a Phantom aircraft collision on a concrete wall is a specialized case study in the field of structural impact dynamics and crashworthiness. This analysis typically refers to experimental and computational investigations carried out to understand the behavior of reinforced concrete structures when subjected to high-velocity impacts from large, heavy objects — in this case, a decommissioned F-4 Phantom jet aircraft.

One of the most well-known real-world tests involving such a scenario was conducted by Sandia National Laboratories in 1988 in the United States. The objective of that test was to assess the ability of massive concrete structures — like those used for nuclear facility containment buildings — to withstand the crash of a fully-fueled commercial or military aircraft.

Background and Objective

The main goals of analyzing such a collision include:

• Evaluating structural integrity: How much damage would a concrete wall sustain from the high-speed impact of an aircraft?
• Nuclear facility safety: This type of impact analysis is particularly important for evaluating the resilience of nuclear reactors against accidental or intentional aircraft crashes.
• Validating simulation models: Real-world tests provide crucial data for validating finite element models (FEMs) used in crash simulations.

Key Observations and Results

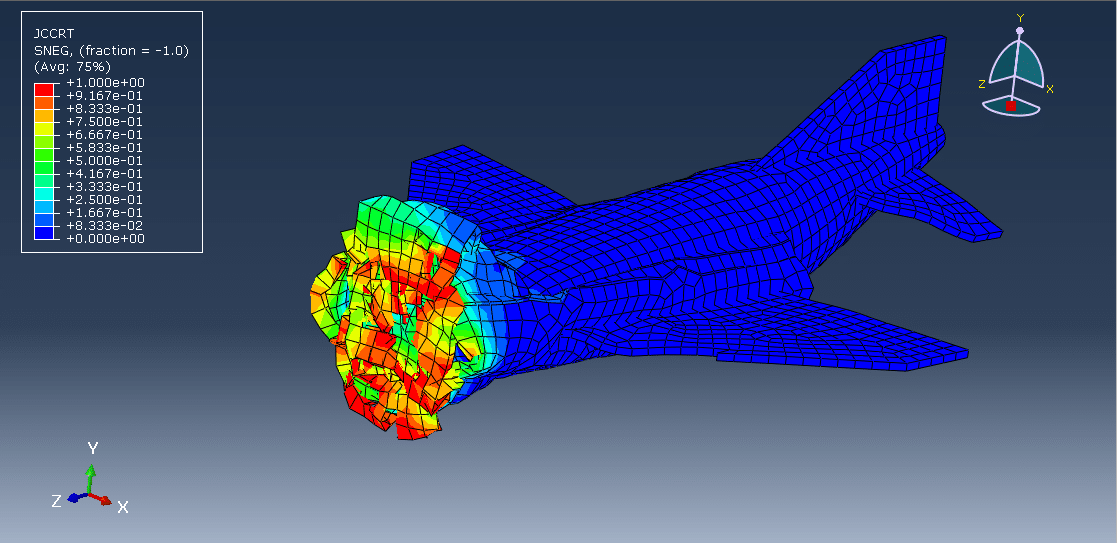

• The F-4 Phantom was almost destroyed upon impact — it essentially “atomized” due to the extreme forces.
• The concrete wall remained intact with only superficial damage; no structural breach occurred.
• The engines, being the densest parts of the aircraft, had the most significant localized impact, but even they did not penetrate the wall.

This result confirmed that well-designed concrete structures could withstand even high-speed impacts from large aircraft.

Engineering and Analytical Insights

1. Impact Mechanics:
   • High-speed impacts generate shock waves, intense localized pressure, and fragmentation.
   • The kinetic energy of the aircraft is converted into deformation energy, heat, and fragment motion.
2. Structural Response:

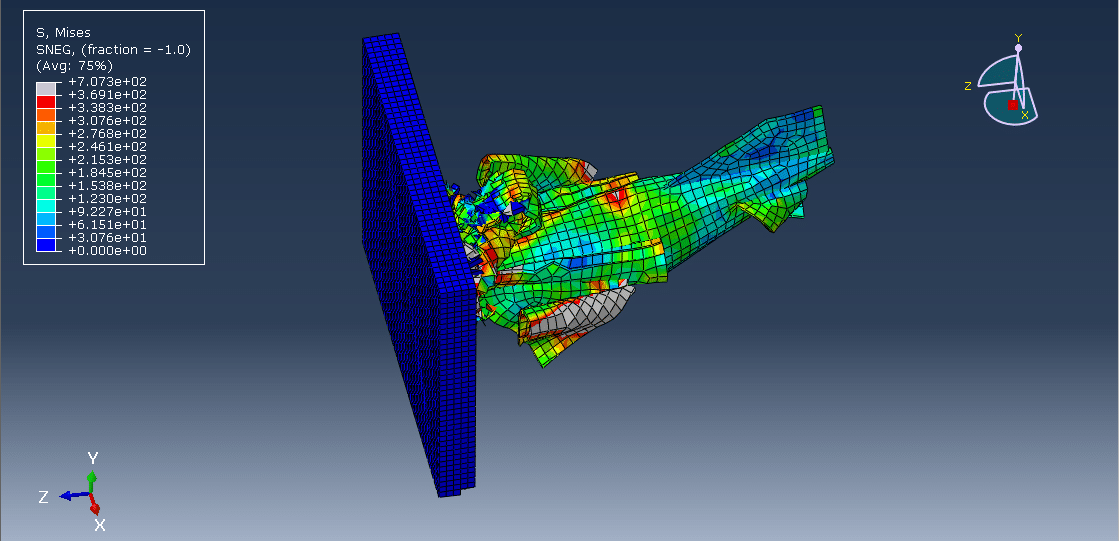

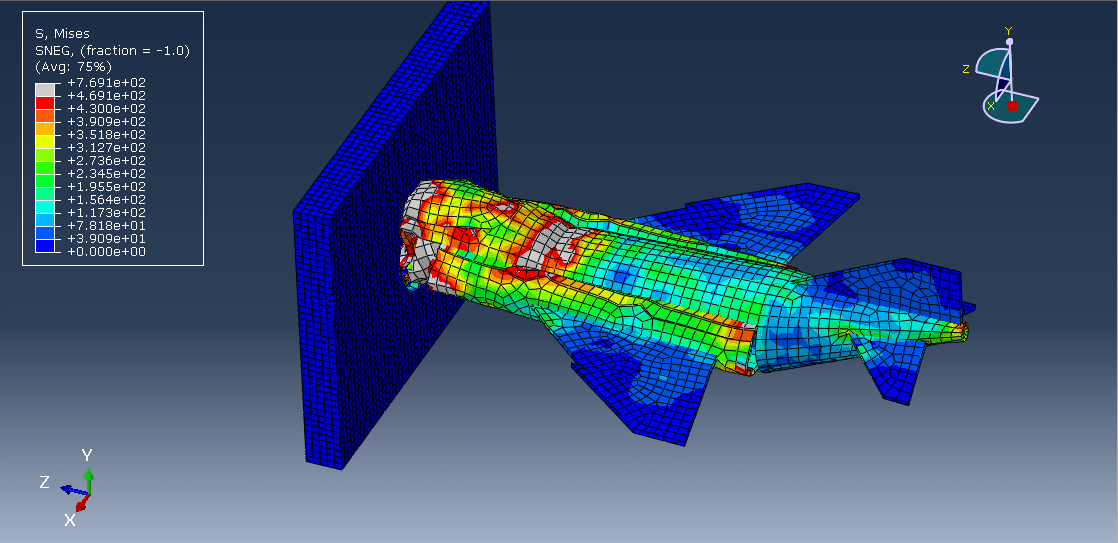

   • The rigid wall experienced high stress concentrations but absorbed and dissipated energy without cracking.
   • Reinforced concrete provides a good combination of compressive strength and ductility due to embedded steel bars.
3. Simulation and Modeling:

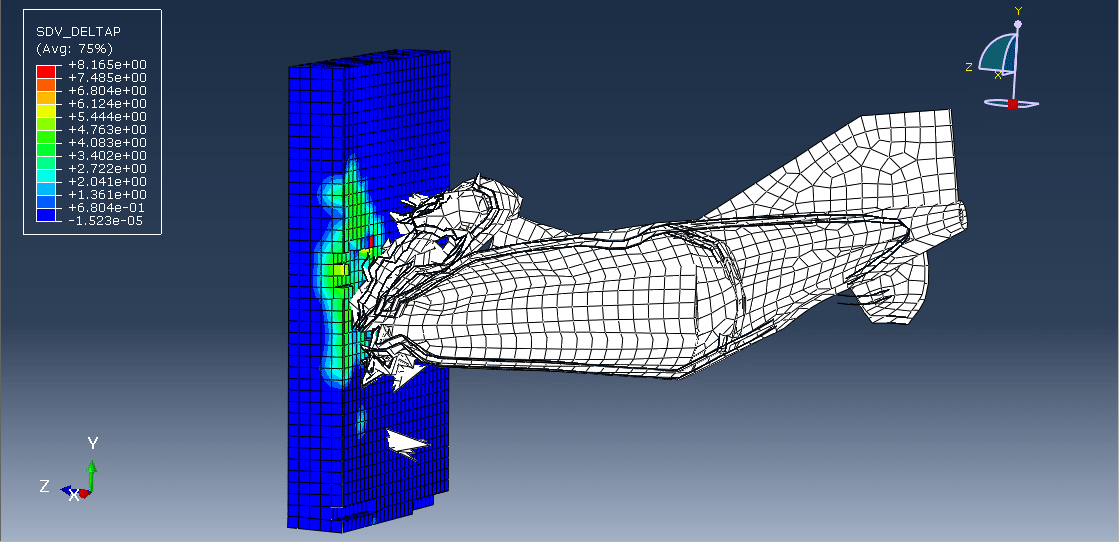

   • The test data helped validate computational fluid-structure interaction (FSI) models used in safety analysis.
   • Modern tools like LS-DYNA or ANSYS AUTODYN replicate such scenarios with high accuracy today.

The analysis of a Phantom aircraft collision on a concrete wall provides valuable insight into structural crash resistance, particularly in the context of critical infrastructure protection. The test demonstrated the robustness of reinforced concrete barriers and served as a foundation for safety guidelines and regulatory frameworks in industries such as nuclear energy, defense, and civil aviation.
