Thermo mechanical models are essential for studying how mechanical processes affect a material’s thermal behavior and vice versa. These models are widely used in simulations such as machining where cutting forces and heat generation are analyzed and in automotive studies like brake system heating. With countless applications, thermo-mechanical analysis is a critical skill in engineering.

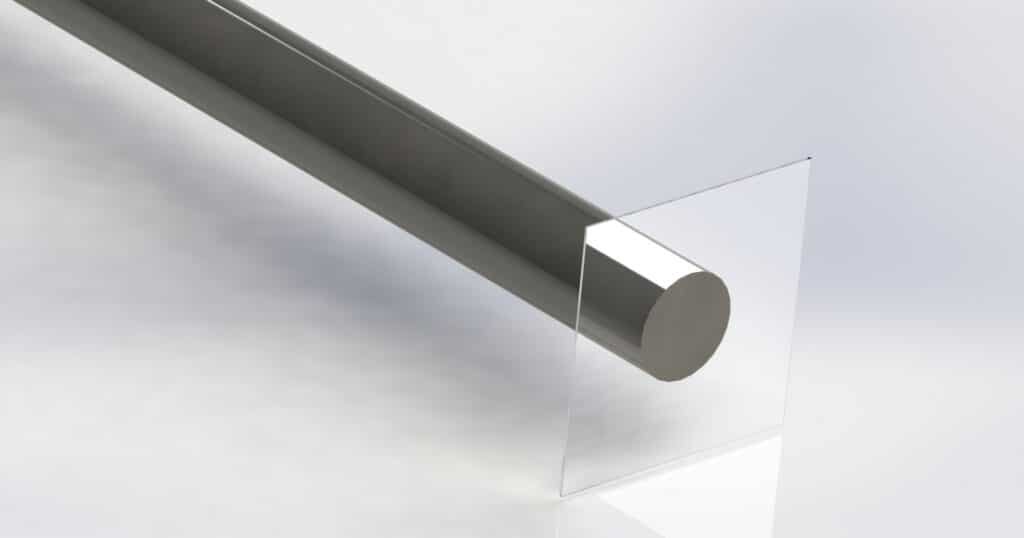

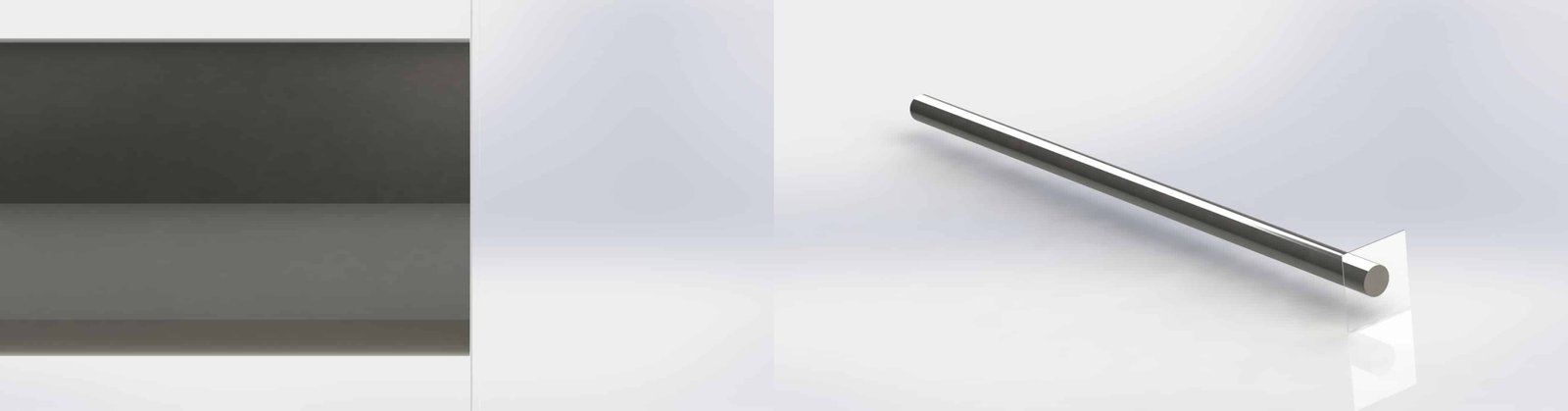

This tutorial provides a simple and practical introduction by modeling a basic mechanical thermocouple. It’s designed to help you understand the fundamentals of coupled temperature-displacement simulations in Abaqus. The video is under 15 minutes, and includes the model file and output results, making it easy to follow and apply.
