Product Overview:

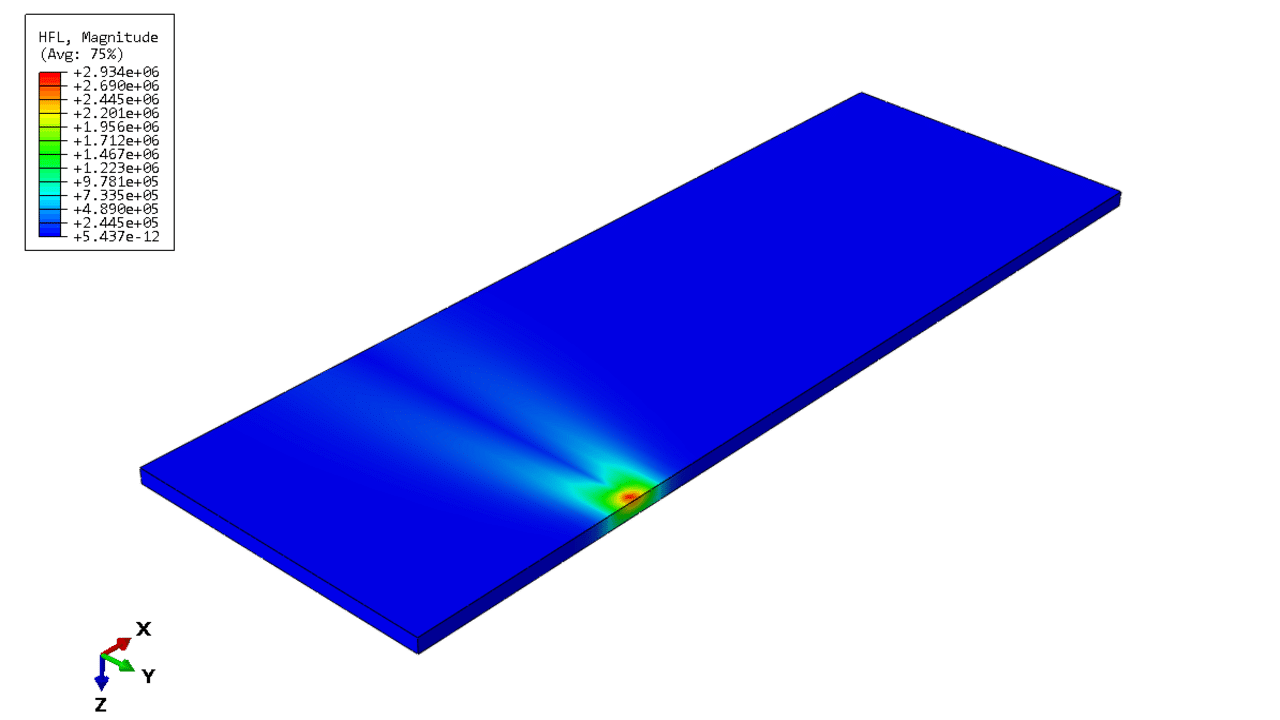

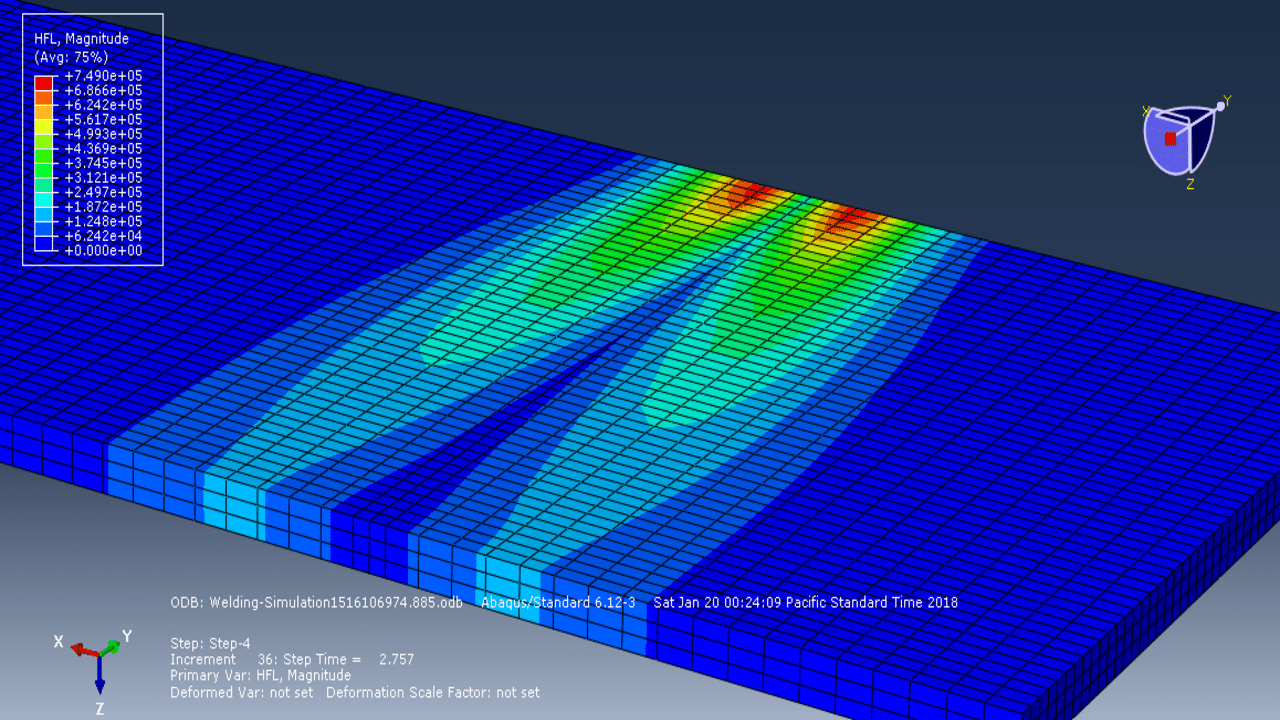

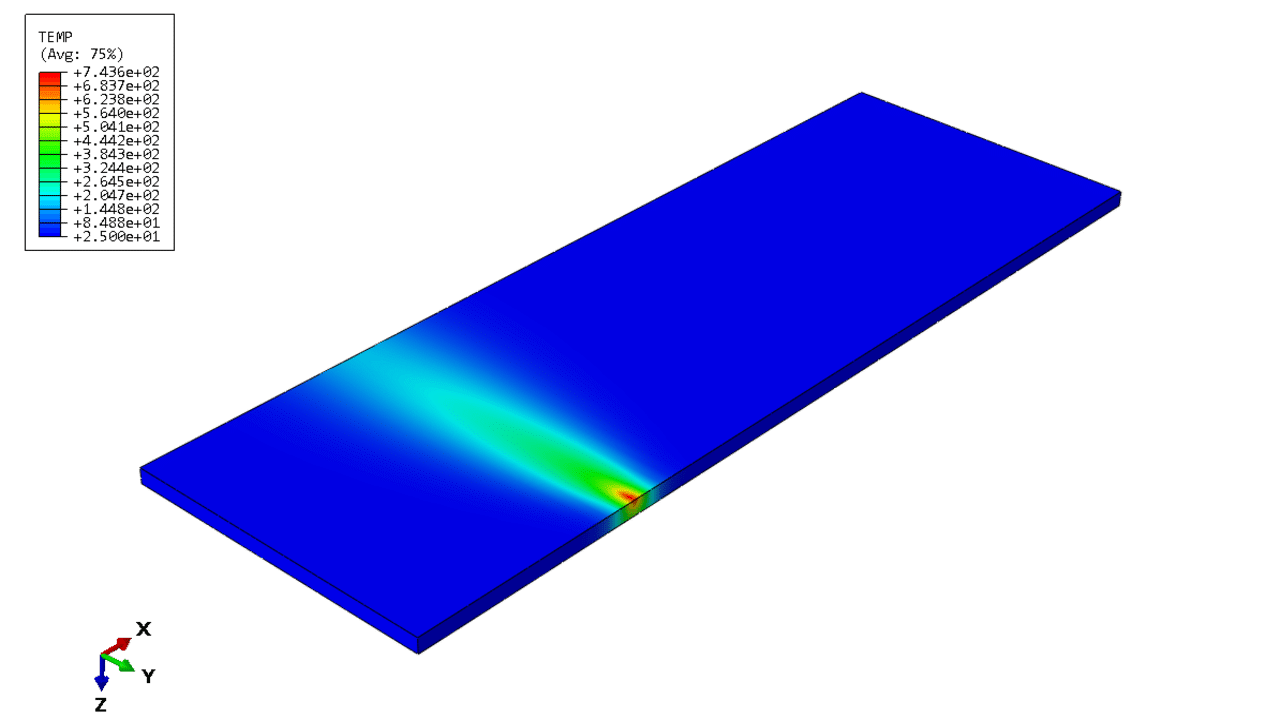

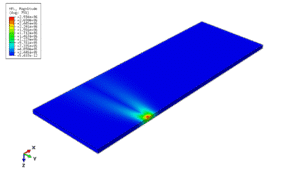

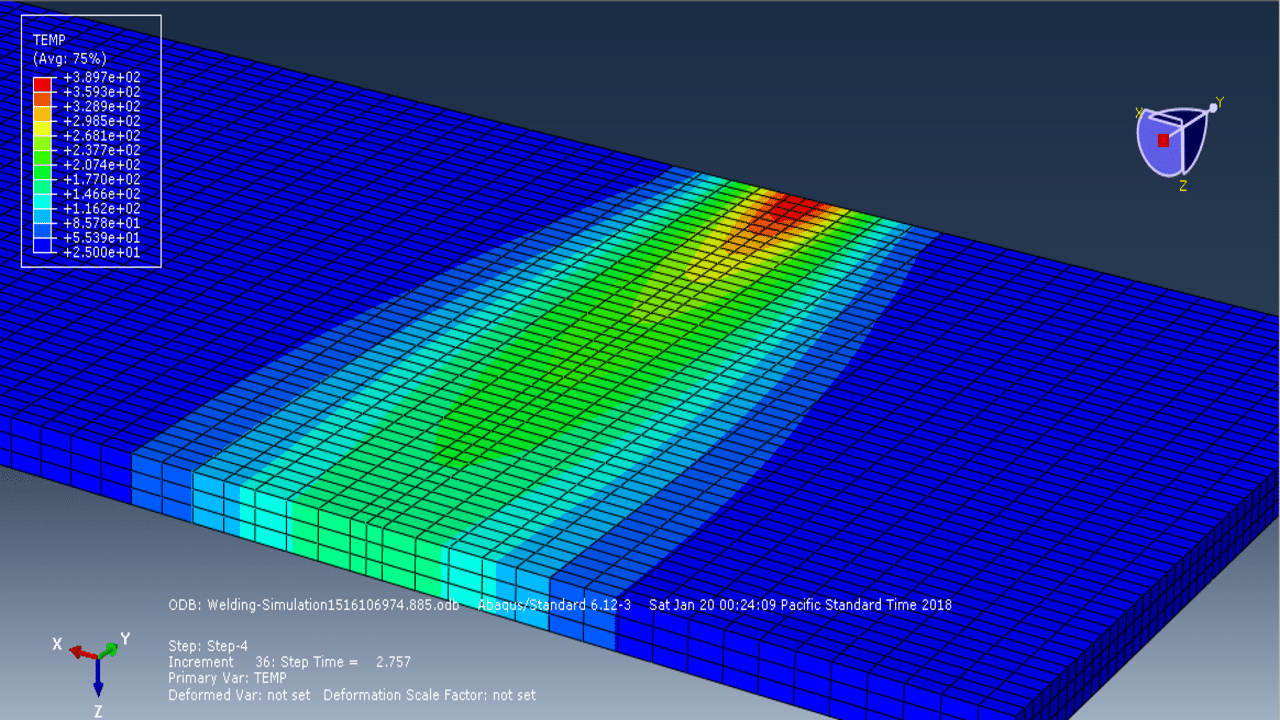

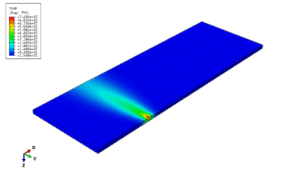

In this video tutorial, we provide a detailed, step-by-step guide on the welding simulation process using the DFLUX subroutine to analyze non-uniform heat distribution. To complete this example, we created a geometric model and defined material properties that vary with temperature. We utilized steel, incorporating characteristics such as elasticity, plasticity, thermal conductivity, thermal expansion, and specific heat, all of which depend on temperature.

Key Topics:

• In this session, you will focus on creating a comprehensive model that simulates both arc and laser welding processes.
• First, you will develop detailed welding geometries.
• Next, you will utilize DFLUX for heat input modeling and analyze its effects on the simulation.
• Finally, you will learn how to set interaction properties and boundary conditions, which will help you replicate real-life welding scenarios effectively.
