Simulation of the Cold Spray Particle Deposition Process

Course Content

Simulation Files

  • Tutorial Video
  • Modeling Files

Student Ratings & Reviews

No Review Yet
No Review Yet

Who this product is for :

  • Mechanical Engineers
  • Engineering students

File collection

Simulation Files

  • Tutorial Video
  • Modeling Files

Student Ratings & Reviews

No Review Yet
No Review Yet

Description

Papers abstract:

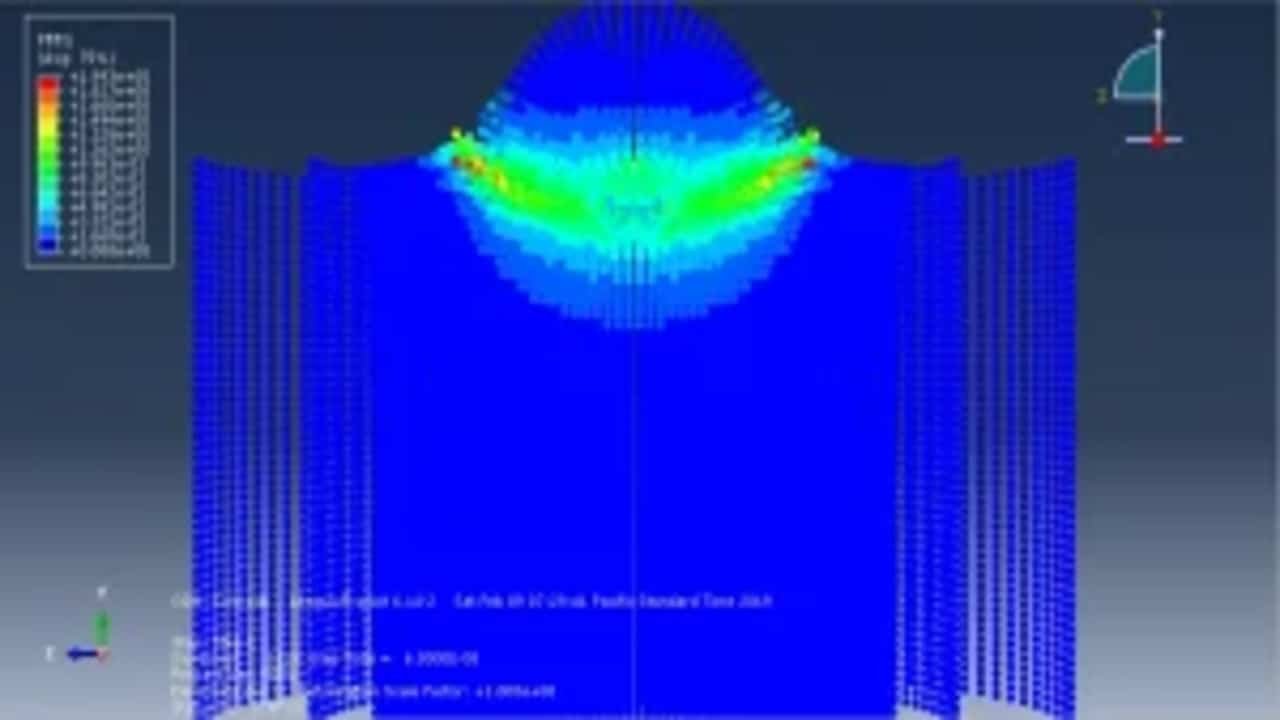

Cold spray is an emerging solid-state coating technique that enables material deposition without melting. This study simulates the cold spray particle deposition process by analyzing the high-velocity impact of spherical particles onto a flat substrate under various conditions. A novel aspect of this work is the application of the Coupled Eulerian–Lagrangian (CEL) numerical method to effectively capture the high-strain rate deformation behavior during impact. The simulations revealed a compressive stress zone at the particle–substrate interface, driven by intense plastic deformation. Due to extremely high contact pressures (around 1 GPa) and brief contact durations (approximately 40 nanoseconds), the plastic deformation was confined to a thin region—just a few micrometers deep—at the base of the particle and the surface of the substrate. The study conducted a parametric investigation into key influencing factors such as impact velocity, initial particle temperature, friction coefficient, and combinations of particle and substrate materials. It was found that increasing impact velocity raised kinetic energy, leading to greater deformation and higher substrate temperatures. The initial particle temperature had a more pronounced effect on the plastic strain than on substrate heating. Friction contributed minimally to temperature rise and only slightly affected plastic strain. Simulations of four material pairings (Cu/Cu, Al/Al, Cu/Al, and Al/Cu) demonstrated that the particle material significantly influenced the deposition behavior more than the substrate. In particular, copper particles, due to their higher density and kinetic energy, enhanced both the contact area and bonding effectiveness. Overall, among the numerical methods evaluated—including Lagrangian, ALE, and SPH—the CEL approach proved to be the most robust and accurate for modeling the extreme deformation conditions typical in cold spray deposition.



Product Overview:

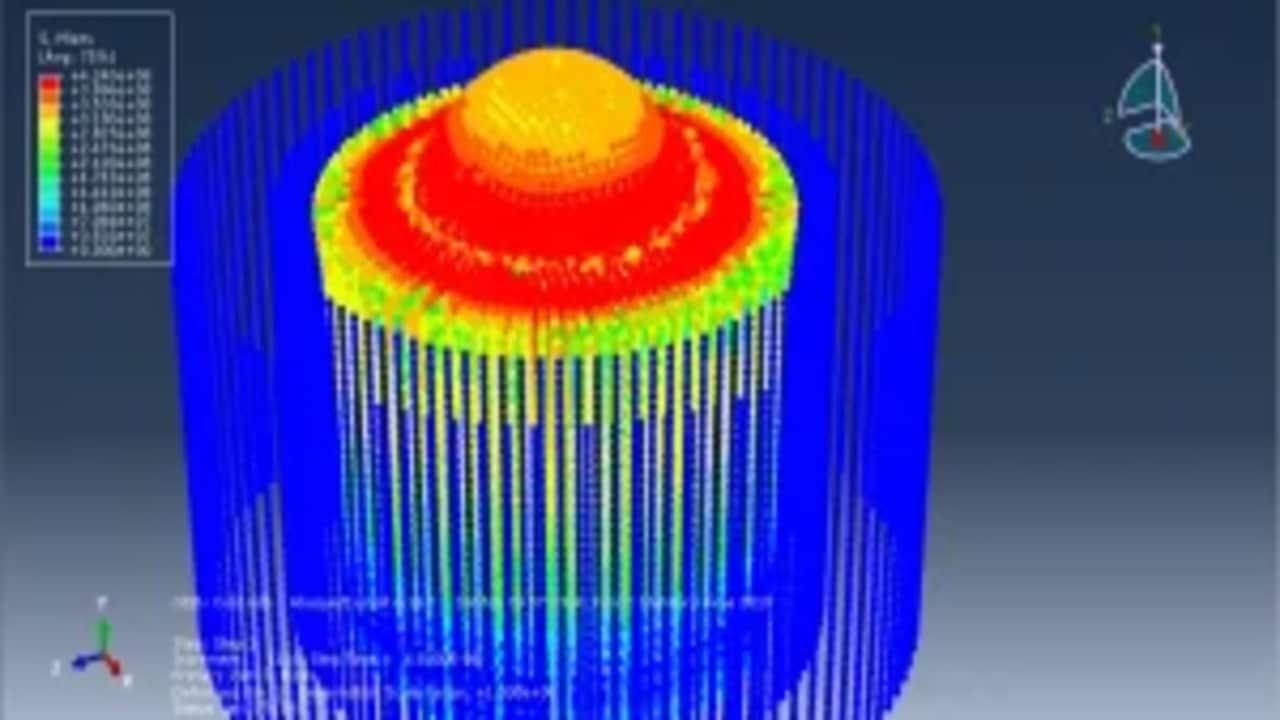

This simulation tutorial reproduces the single particle impact scenario in cold spray deposition, analyzing plastic deformation and thermal effects using Abaqus. It is designed for researchers and engineers interested in high-velocity solid-state coating processes. Key simulation steps include:

  • Geometry and mesh creation for particle and substrate
  • Application of SPH method
  • Implementation of Johnson–Cook plasticity and Us-Up EOS
  • Parametric studies on velocity, temperature, friction, and materials



In this tutorial, cold spray particle impacts on metallic substrates are simulated, according to data from the work of Jing Xie et al.

More information

  • This tutorial is ideal for advanced users seeking to replicate experimental or literature-based cold spray impact scenarios. It demonstrates best practices for setting up CEL-based thermal-mechanical simulations, interpreting strain and temperature fields, and validating simulation choices. The results align closely with those published in the Journal of Tribology and offer a foundation for extending to multi-particle or substrate-layered simulations.
