Product Overview:

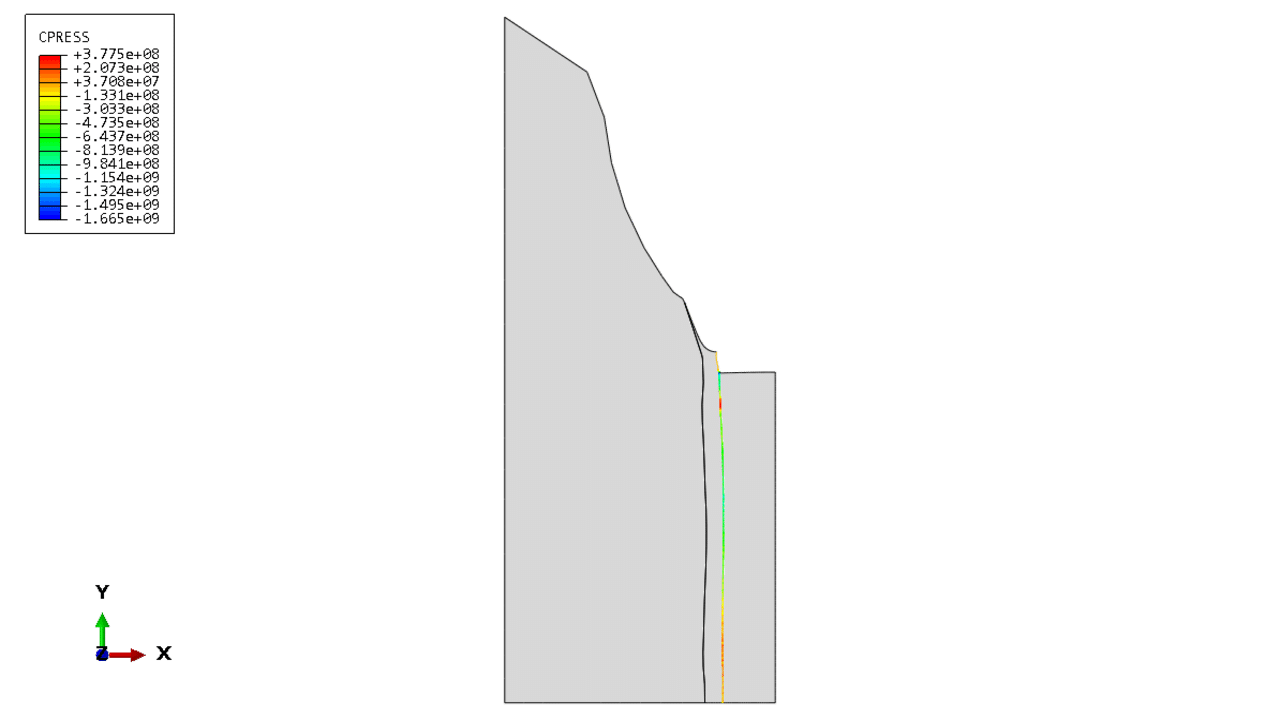

This video provides a comprehensive, step-by-step explanation of the explosive welding process between two pipes using Abaqus. The inner pipe, known as the flyer pipe, is composed of titanium, while the outer pipe, referred to as the base pipe, is made of steel. Both pipes are modeled as axisymmetric components, along with TNT, which is also treated as an axisymmetric part. The behavior of TNT is modeled using the Jones-Wilkens-Lee (JWL) equation of state.

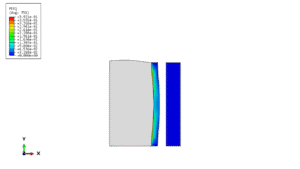

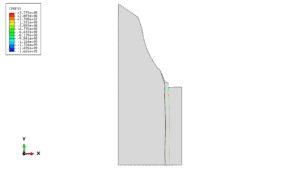

During the simulation, the titanium pipe acts as the flyer, moving towards the steel pipe. The explosive force from the TNT generates significant pressure on the flyer pipe, resulting in a weld joint formed at the interface of the two pipes. The quality of the mesh plays a crucial role in the accuracy of the results; therefore, increasing the number of elements is essential for improved outcomes.

Key Topics:

• Explore the dynamic world of explosive welding in this tutorial.
• You will create models of titanium and steel pipes, along with the explosive charge.
• As you establish the material properties and sections, you’ll focus on simulating explosion dynamics accurately.
• Additionally, you will implement adaptive mesh techniques to manage significant deformation during the explosive welding process.
