The Role of Fitness-for-Service (FFS) in Asset Integrity

Fitness-for-Service (FFS) analysis is a structured engineering approach to determine if equipment with flaws or damage can continue to operate safely and reliably. It is a crucial part of asset integrity management, especially in high-risk sectors like oil & gas, power generation, and manufacturing. Over an asset’s lifetime, issues such as cracks, corrosion, or other deterioration are almost inevitable. FFS assessments help owners decide whether to run, repair, or replace equipment by quantitatively evaluating structural integrity under current conditions. This process not only prevents failures and downtime but also avoids unnecessary repairs, optimizing maintenance budgets while upholding safety and compliance. In practice, FFS is applied to pressure vessels, piping systems, storage tanks, boilers, and other critical equipment across industries to extend their useful life without compromising performance. By embracing FFS as part of asset integrity programs, companies enhance operational safety, ensure regulatory compliance, and maximize the value of their assets over time. It’s a win-win for safety and economics, which is why standards and best-practice guidelines have been developed around FFS.

Standards and Levels of FFS Assessment (API 579-1/ASME FFS-1)

To standardize FFS evaluations, the API 579-1/ASME FFS-1 Fitness-For-Service standard was created jointly by the American Petroleum Institute and ASME. This comprehensive standard provides proven procedures to assess flaws like corrosion, cracks, dents, and other damage in pressurized equipment after it has been in service – scenarios not covered by original design codes. FFS assessments are categorized into three levels (Level 1, 2, and 3) of increasing complexity. Level 1 is a basic screening assessment using conservative calculations and minimal data – often via hand calculations, lookup tables or simple formulas – to quickly judge if an item is obviously fit or unfit. Level 2 involves more detailed evaluation (for example, refined calculations or standardized software tools) and requires more data input; it’s typically performed by experienced engineers when a Level 1 assessment is inconclusive. Level 3 is the most advanced FFS analysis, employing detailed engineering simulations and extensive data to rigorously determine fitness-for-service. At Level 3, practitioners often use finite element analysis (FEA) and specialist techniques to model the component’s behavior under actual conditions. Each successive level demands more effort, data, and expertise, but yields a more precise outcome. In fact, the FFS standard notes that a Level 3 assessment may involve multidisciplinary engineering and numerical methods like FEA to demonstrate structural integrity with the highest confidence. By progressing through these levels, engineers can ensure that they only take on the effort of complex analysis when needed, and that critical decisions (such as rerating a vessel or approving continued run) are backed by the appropriate level of rigor. (For example, if a simple Level 1 check shows a pressure vessel well within safe limits despite some wall thinning, costly advanced analysis can be avoided. But if not, a Level 3 assessment per API 579-1 might be required to justify continued operation.) The API 579-1/ASME FFS-1 standard thus provides a tiered framework for Fitness for Service analysis, ensuring consistency and safety in asset integrity decisions. (Notably, the latest 2021 edition of API 579-1 has introduced updates to analysis methods and material data, keeping the standard in line with modern engineering knowledge.)

Using Finite Element Tools (Abaqus, Ansys) for FFS Analysis

Advanced FFS assessments (particularly API 579-1 Level 3 assessments) often leverage Finite Element Method (FEM) simulations using tools like Dassault Systèmes Abaqus, ANSYS Mechanical, and similar FEA/CFD software. These tools enable a detailed Fitness for Service analysis by simulating the component’s behavior with its actual flaws and loading conditions. FEA software can model complex geometries and irregular damage that hand calculations can’t easily handle – for example, a corroded region with uneven thinning or a crack at a nozzle junction. The FFS standard even permits using finite element stress analysis to more accurately calculate things like remaining strength or allowable pressure in such cases. Simulation software is thus a key enabler for FFS: it calculates stress, strain, and deformation in the flawed component to predict how close it is to failure criteria. Engineers input material properties, actual operating pressures/temperatures, and flaw geometry into Abaqus or Ansys to perform an elastic-plastic stress analysis, fracture mechanics calculation, or buckling analysis as required.

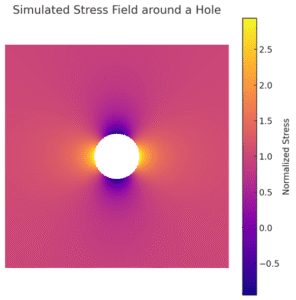

Example: A finite element stress field plot highlighting how stresses concentrate around a flaw (circular opening) in a pressure-bearing component. Warmer colors indicate higher stress, which FEA tools can predict with high accuracy.

Crucially, these FEA results are interpreted in accordance with API 579-1/ASME FFS-1 acceptance criteria. In other words, the software provides the detailed stress/strain data, and the engineer then evaluates those results against the FFS standard’s limits for plastic collapse, crack growth, buckling, etc. For instance, the standard might require that computed stress intensity factors at a crack tip remain below the material fracture toughness (with appropriate safety factors) – something FEA can help determine. By using FEA in FFS, one can simulate scenarios that are difficult to test in real life, such as a large defect in a complex geometry, or the effects of combined loads (pressure, thermal, residual stresses) on a damaged component. Computational Fluid Dynamics (CFD) tools may also be employed alongside FEA for certain FFS evaluations – for example, to model thermal profiles or fluid-induced stresses in equipment – but the core of most FFS Level 3 assessments is solid-mechanics FEA. The bottom line is that Abaqus, Ansys and similar FEM tools act as powerful “virtual pressure vessel inspection software,” allowing engineers to digitally inspect and stress-test equipment integrity without taking it out of service. This aligns with the FFS standard’s goal of quantitatively demonstrating structural integrity: a well-validated FEA model provides quantitative evidence that an aging asset is still fit for service (or shows precisely how close to the margin it is). EngineeringDownloads.com specializes in this approach – using state-of-the-art FEA simulations as part of our FFS consulting to ensure our clients’ equipment can be operated safely or to pinpoint when and why it cannot.

Common Applications of FFS Analysis with FEA

Crack Propagation and Critical Flaw Analysis

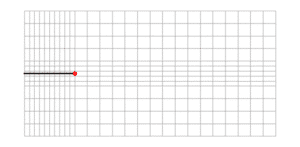

Illustration: A refined finite element mesh around a crack tip (red dot) in a plate. Fine mesh near the crack allows accurate computation of the crack tip driving force (stress intensity), which is used in FFS fracture assessments.

Cracks are a formidable threat to any pressure equipment. Fracture mechanics techniques in FFS evaluate whether discovered cracks will remain stable or will propagate to failure under operating conditions. API 579-1 provides methods like the Failure Assessment Diagram (FAD) approach to combine fracture toughness and stress data into a graphical assessment of crack stability. For example, using an FAD, an engineer can plot a given crack’s parameters to see if the point lies below the curve (safe) or above it (unsafe). In one case, a 10 mm crack in a turbine shaft was found to be stable (the assessment point fell below the FAD curve), whereas a 12 mm crack would be unstable and predicted to cause failure. With tools like Abaqus or Ansys, we can perform crack analysis by modeling the crack in the component’s FE mesh and computing parameters such as the Stress Intensity Factor (K) or J-integral at the crack tip. These results feed directly into FFS acceptance criteria. Engineers will iterate to find the critical flaw size – the largest crack that can be tolerated for a given loading condition. The FFS standard essentially asks: How big can this crack grow before the component is no longer fit for service? With FEA-based crack simulation, we can answer that with confidence. The analysis might reveal, for instance, that a crack can grow to, say, 15 mm before reaching the instability condition – that becomes the allowable flaw size. Armed with this information, operators can plan inspections and repairs proactively. If the current crack is, say, 5 mm, the FFS analysis might justify continued operation with monitoring, and schedule a repair when it approaches the critical size. This prevents unnecessary shutdowns while maintaining safety. Modern FEA tools also allow crack propagation simulations (e.g. fatigue crack growth under cyclic loads), enabling an FFS assessment to predict how soon a crack might reach critical size. In summary, crack analysis using Ansys or Abaqus in an FFS context gives a quantitative basis to decide “Will it break, and when?”. It ensures that structural components with crack-like flaws are either demonstrated safe for continued service or taken out of service before failure. Check out Crack Analysis package on website.

Corrosion and Wall Thinning Evaluation

Corrosion-related metal loss is another common issue addressed by Fitness for Service analysis. When a pressure vessel or pipe wall thins due to corrosion or erosion, the key question is whether the remaining thickness is still sufficient to contain the pressure (with an acceptable safety factor). FFS Level 1 and 2 provide formulas to compute a Remaining Strength Factor (RSF) or minimum required thickness, but these can be overly conservative if the corrosion is localized or irregular. Here is where FEM comes in handy for corrosion damage assessment. Engineers can build an FEA model of the component that includes the measured thickness profile – essentially a 3D corrosion map of the metal loss. For example, in one FFS Level 3 case study, over 20,000 thickness data points from an ultrasonic inspection were mapped onto an Abaqus finite element model of a large vacuum tower. This allowed the simulation to accurately represent the varying wall thickness across the vessel. An elastic-plastic stress analysis was then performed to evaluate stresses in the thinned regions and to check against failure modes like plastic collapse and buckling. (Buckling is a critical mode for vessels under vacuum or external pressure when walls get thinner.) The FFS analysis showed that despite significant wall thinning, the vessel could continue to operate safely up to the next scheduled maintenance interval. In that particular case, one of two corroded towers was found fit-for-service as-is until the outage, and the other needed a localized reinforcement (a fillet-welded patch) before the next interval to meet the code margins. By simulating the corrosion damage with FEM, the engineers avoided an immediate shutdown – the refinery continued running safely, and repairs were done during the planned downtime rather than in an emergency. This illustrates how FFS coupled with FEA can turn extensive corrosion data into actionable decisions: the analysis quantifies the remaining life of the equipment, often providing a clear timeline for when thickness will reach retirement limits. Even for simpler cases like a uniformly thinned pipe, FEA can refine the stress analysis and often demonstrates a bit more remaining strength than the ultra-conservative hand calc, which can be the difference between an urgent replacement and a scheduled one. In summary, corrosion evaluation via FFS ensures that metal loss (whether general wall thinning or local pitting) is properly assessed. If the FFS analysis shows the component is acceptable (perhaps with a reduced maximum allowable pressure or a limited operating period), it can remain in service; if not, you have the data to justify repairs or replacement. Either way, the decisions are based on engineering analysis rather than guesswork – improving safety and optimizing maintenance costs.

Pressure Vessel Integrity Assessment

Pressure vessels and other pressurized systems (like heat exchanger shells, reactors, etc.) often undergo FFS assessments when inspection reveals anomalies that design codes didn’t anticipate. For instance, you might find a dent, misalignment, weld misprofile, or an improper material condition in a vessel. Original construction codes (ASME Section VIII, etc.) ensure vessels are built to certain standards, but they do not address in-service flaws or damage that develop over decades of operation. FFS assessment fills this gap by allowing engineers to re-rate or evaluate equipment with defects against fitness-for-service criteria. A common scenario is when a vessel’s wall thickness falls below the original code minimum (due to corrosion or erosion). Instead of automatically condemning the vessel, an API 579-1 Level 2 or Level 3 assessment can be performed to see if the vessel at its current actual thickness can still safely withstand the operating pressure. Often, a refined analysis shows that the vessel is still OK for continued use, perhaps at a slightly reduced Maximum Allowable Working Pressure (MAWP) if necessary. In more complex cases, like a vessel with a large structural discontinuity or multiple interacting flaws, a full Level 3 FEA-based analysis is warranted.

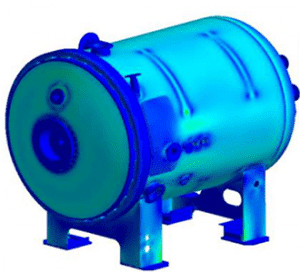

We simulate the pressure vessel with all relevant details – e.g. nozzle openings, support loads, temperature gradients, etc. – and include the identified defects in the model. The FEA yields a detailed stress distribution that we then evaluate per the FFS acceptance criteria (plastic collapse margin, local strain limits, fatigue usage, etc., depending on the damage mechanism). Many companies have avoided unplanned shutdowns thanks to such FFS pressure vessel assessments. For example, TWI reported using FFS to evaluate a subsea pipeline dent caused by a dropped anchor, ultimately showing it could remain in service safely. Likewise, a corroded pulp digester in a power facility was analyzed and found fit for continued use with monitoring. In our own EngineeringDownloads.com projects, we’ve seen cases where a vessel with moderate distortion passed a Level 3 FFS analysis (via FEA) and continued to operate, whereas another with a similar distortion failed the analysis – giving quantitative justification why one could run and the other needed repair. The benefit of these pressure vessel FFS assessments is clear: you get a science-based answer on whether equipment is “good to go” or not. And if it’s not, FFS analysis often guides how to safely manage the issue – for instance, by derating pressure, enhancing inspection frequency, or applying a reinforcing repair as a temporary or permanent fix. Ultimately, FFS analysis using tools like Abaqus and Ansys has become an integral part of pressure vessel inspection and integrity programs. It is essentially a form of pressure vessel inspection software that goes beyond surface NDT findings, by telling you what those findings mean for the structural safety of the vessel.

Weld Integrity and Welding Burn-Through Assessment

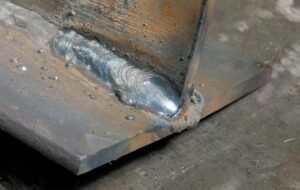

Welds in pressure equipment can be a source of defects – from fabrication flaws like lack of fusion or porosity, to service-induced problems like weld cracking. FFS provides a route to assess weld defects quantitatively, rather than assuming any deviation from code weld criteria is an immediate cause for repair. For example, construction codes have workmanship limits on weld flaws (e.g. maximum porosity size, crack not acceptable at all, etc.), but these are often conservative “one-size-fits-all” rules. In practice, many vessels and pipes run for years with minor “out-of-code” weld discontinuities that do not actually compromise fitness-for-service. Instead of unnecessary grind-outs or repairs, an FFS assessment can be performed to evaluate the specific flaw. This is sometimes called an Engineering Critical Assessment (ECA) of the weld. The flaw’s size, location, and orientation are considered in a fracture mechanics analysis to see if it has sufficient safety margin. Typically, planar flaws like cracks are highest risk, while volumetric flaws like porosity may be more benign. A shallow “burn-through” or concave spot in a weld (where a bit of the base metal got melted away during welding) might look bad, but if it’s small compared to the wall thickness, FFS could show it’s acceptable.

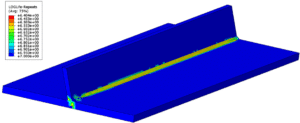

The FFS procedures in API 579-1 include specific modules for different flaw types, including weld flaws, and by selecting the appropriate assessment level, engineers can often justify that a defect is tolerable until the next inspection. We use FEA to assist in these cases too – for instance, modeling a weld seam with an embedded flaw to compute the stress intensity at the flaw. This weld FFS analysis helps avoid unnecessary repairs and focuses attention on truly critical defects. Another important application is evaluating in-service welding operations. When maintenance requires welding on a live pipeline or pressure vessel (e.g. hot taps or repairs without shutdown), there is a risk of welding burn-through – essentially overheating the local wall and blowing a hole through it. FFS guidelines help determine the minimum remaining wall thickness and welding heat input to avoid burn-through. By analyzing the thermal stress and factoring in flaw tolerance (Section 3 of API 579-1 even provides guidance on temporary welds and burn-through limits), engineers can develop a welding procedure that is safe. For example, API 579-1/ASME FFS-1 provides tables and calculations for the maximum allowed heat for a given thickness to prevent burn-through. If the wall is too thin, FFS might recommend a sleeve or a different repair approach instead of direct welding. Using simulation tools, we can also model the weld deposition and resulting temperature profile to ensure it stays below the burn-through threshold. In summary, welding burn-through FFS assessment is about preventing accidents during repair work, and FFS of weld defects is about avoiding over-conservative condemnations of otherwise sound welds. Both applications leverage the Fitness-for-Service principles to keep plant equipment safe and operational. Thanks to these methods, plant managers can make informed decisions: for instance, living with a known weld flaw that is demonstrated safe, or confidently proceeding with an on-stream weld knowing the analysis has covered worst-case scenarios. It’s all part of using engineering rigor to manage real-world imperfections.

Our Expertise in FFS and a Call to Action

At EngineeringDownloads.com, we pride ourselves on being more than just analysts – we are your engineering partners in asset integrity. Our team has deep experience performing Fitness for Service analysis in accordance with API 579-1/ASME FFS-1, using advanced FEA tools like Abaqus and Ansys to tackle the toughest integrity challenges. Whether it’s a Level 3 crack analysis of a reactor nozzle using Abaqus, a corrosion damage FEM simulation for a thinned-out boiler shell, or a quick Level 1 screening on a storage tank, we have you covered. We combine our simulation expertise with field experience to provide practical recommendations. All assessments are conducted under the guidance of certified professionals and align with ASME/API standards and your local regulatory requirements. We can help extend the life of your assets safely, often saving you from costly unplanned shutdowns or replacements.

If you’re an engineer or plant manager dealing with an integrity issue, maybe you’ve found an indication during inspection and aren’t sure if it’s critical – our experts can perform a prompt FFS evaluation and guide you on the next steps. If you’re in HR or maintenance management, consider upskilling your team with our training resources on FFS and FEM tools, so they can make data-driven decisions on asset integrity. EngineeringDownloads.com also stays up-to-date with the latest software and standard revisions (for example, we’ve incorporated the newest API 579-1 2021 updates into our analysis approach).

Ready to ensure your equipment is fit for service? Contact us today to request a consultation. We’ll assess your situation and tailor an FFS solution that keeps your operations safe and efficient. Let our friendly, expert team help you navigate the complexities of Fitness-for-Service – from initial assessment through to implementation of recommendations. With EngineeringDownloads.com FFS consulting services, you gain peace of mind that your assets will remain reliable and compliant with the highest engineering standards. Reach out now to discuss your specific needs, and let’s work together to keep your plant running safely for years to come. (Your equipment’s future can be secured – one Fitness-for-Service assessment at a time!)
